技术参数：

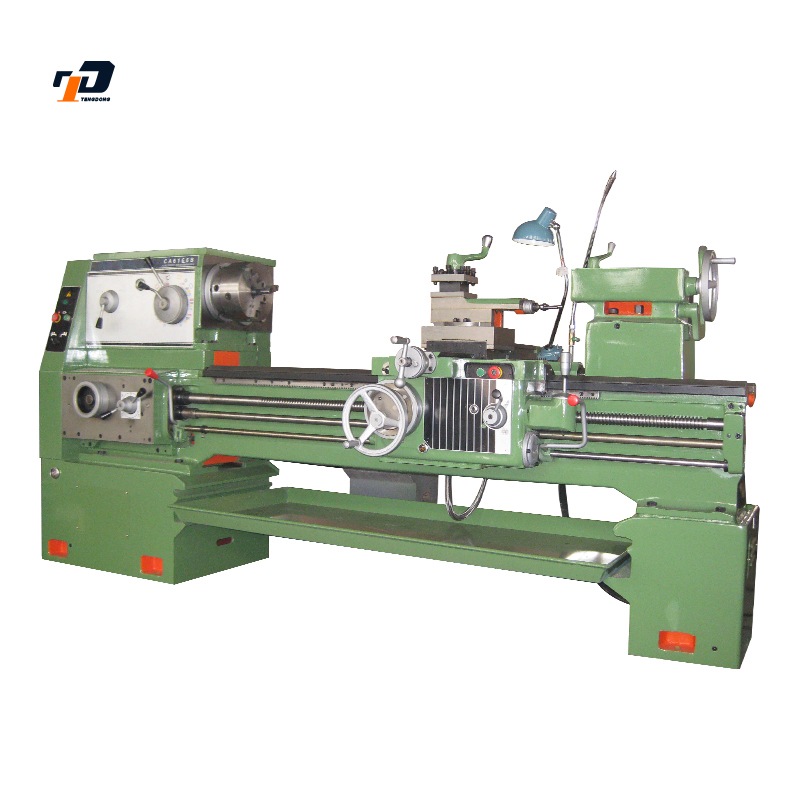

| 型号 | CA6166B CA6166C | CA6266B CA6266C | |
| 床身最大工件直径 | 660mm | ||
| 刀架上最大工件直径 | 400mm | ||
| 马鞍槽最大工件直径 | -- | 880mm | |
| 马鞍槽有效长度 | -- | 210mm | |
| 最大工件长度 | 750/1000/1500/2000/2200/3000/4000mm | ||
| 床身宽度 | 400mm | ||
| 刀杆截面 | 25*25mm | ||
| 主轴 | 主轴转速范围 | 10-1400rpm/16-1400rpm (24级steps) | |
| 主轴内孔 | 52mm 80mm 105mm | ||
| 主轴孔锥度 | 莫式NO.6 (MT6) Φ90 1:20 Φ113 1:20 | ||
| 进给 | 进给数量 | 64种kinds (for each) | |
| 公制螺纹 | (1-192mm)44种kinds | ||
| 英制螺纹 | (2-24tpi)21种kinds | ||
| 模数螺纹 | 0.25-48 (模数39种) (Moduie 39 kinds) | ||
| 径节螺纹 | (1-96DP)37种kinds | ||
| 尾座 | 尾座主轴最大行程 | 150mm | |
| Tailstock | 尾座主轴直径 | 75mm | |
| 尾座主轴孔锥度 | 莫氏NO.5 (MT5) | ||
| 主电机 | 7.5kW (10HP) | ||
| 包装尺寸 | Overall dimensions for750mm | 2550*1140*1750 | |
| (L*W*H mm) | Overall dimensions for1000mm | 2700*1140*1750 | |
| Overall dimensions for1500mm | 3200*1140*1750 | ||
| Overall dimensions for2000mm | 3700*1140*1750 | ||
| Overall dimensions for2200mm | 4030*1140*1750 | ||
| Overall dimensions for3000mm | 4850*1140*1750 | ||
| Overall dimensions for4000mm | 5800*1140*1750 | ||
| 重量 | Length | 毛重 净重 | |
| (kg) | G.W N.W. | ||
| Weight for 750mm | 2380 2260 | ||
| Weight for 1000mm | 2570 2450 | ||
| Weight for 1500mm | 2810 2640 | ||
| Weight for 2000mm | 3050 2880 | ||
| Weight for 2200mm | 3390 3180 | ||
| Weight for 3000mm | 3930 3687 | ||
| Weight for 4000mm | 4580 4200 | ||
